Fitlet-H performance / Power Limit

[TheLaG]

Hello people!

Few days ago got my Fitlet-H, which will work as 24/7 web server/file server. So last few days I did some testing limiting APU power consumption.

I tested values from 2000 - 10000 mW power consumption, and results were:
PassMark

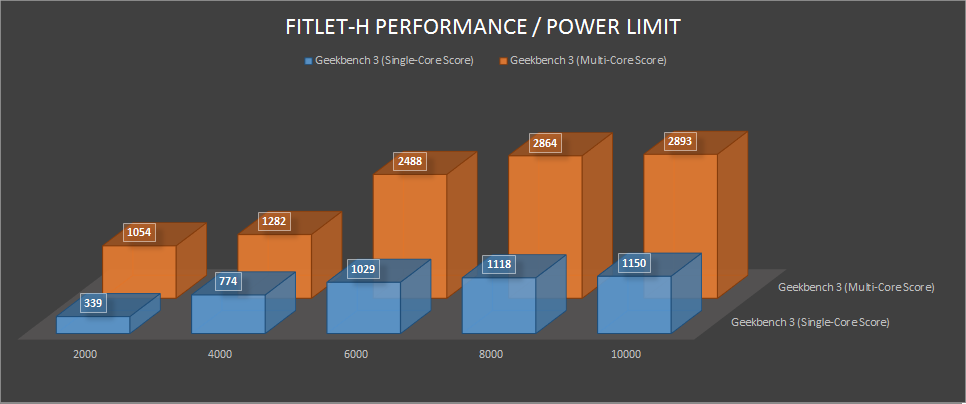

Geekbench 3

Geekbench 3.png (32.27 KiB) Viewed 12846 times

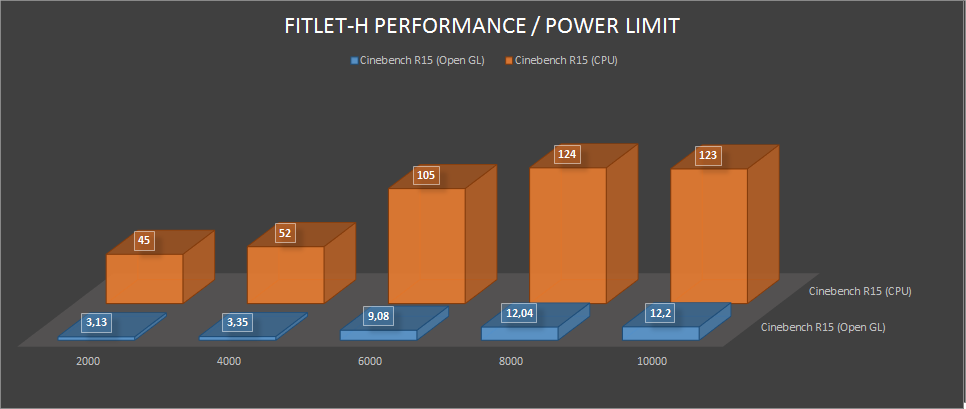

Cinebench R15

Cinebench R15.png (26.83 KiB) Viewed 12846 times

In heat test when I pushed fitlet-h to max, I got close to 70 degrees Celsius, but to get this temperature, I needed to do stress test for 8 hours

I did also test on 25000 mW power limit, but it was almost the same as 10000, so I did not include it in graphs. Hope it will be useful for someone, to get clear understanding of how capable this nice little black box is

-----
My home workstation with Intel Core i5-3570K @ 3.40 GHz and AMD Radion R260X scored:

PassMark (CPU): 7347 pt
PassMark (2D Graphics): 784 pt
PassMark (3D Graphics): 3105 pt
PassMark (Memory): 2437 pt
Geekbench 3 (Single-Core Score): 3193 pt
Geekbench 3 (Multi-Core Score): 10214 pt
Cinebench R15 (Open GL): 73.2 fps
Cinebench R15 (CPU): 484 cbt

[irads]

Thank you TheLaG for the comprehensive testing and professional presentation.

We reshared it at fit-PC blog on Google+
https://plus.google.com/+Fitpc-by-compu ... TMsZf2vwxB
